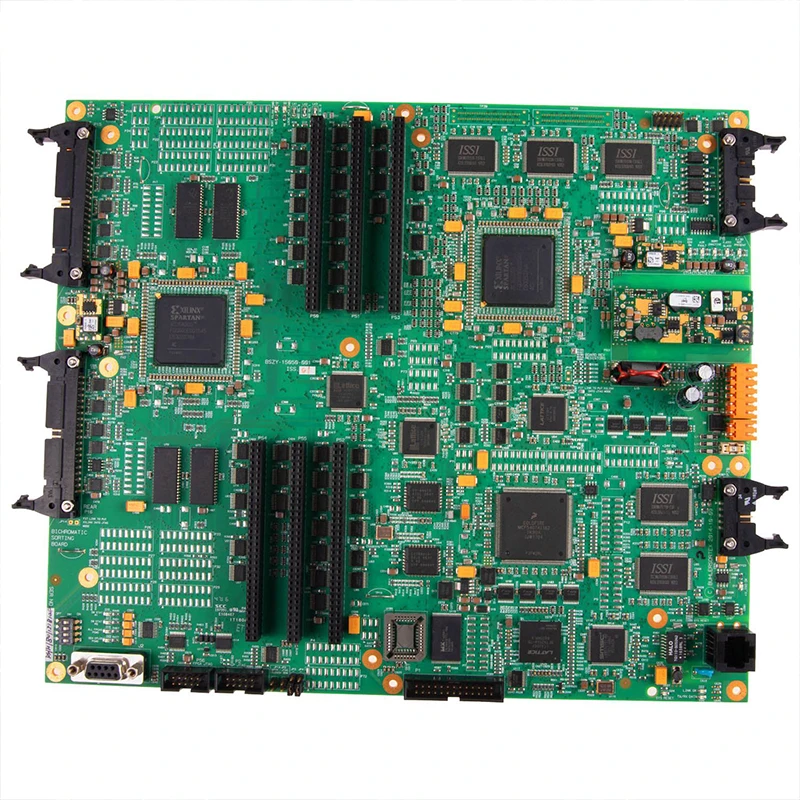

Turnkey PCBA

What is Turnkey PCBA? The Ultimate Partnership Model

Turnkey PCBA (Full Turnkey) is the most comprehensive electronics manufacturing service model. Under this arrangement, SENTAK assumes complete responsibility for the entire production process beyond providing the design files (Gerbers, BOM, Assembly Drawings). This includes sourcing all electronic components, managing the supply chain, performing PCB fabrication and assembly, conducting rigorous testing, and managing final logistics. You provide the intellectual property; we deliver a fully functional, tested product ready for integration or shipment. This model transforms us from a vendor into a true extension of your manufacturing operations, eliminating your logistical burden and mitigating supply chain risk.

Why Choose Full Turnkey? The Strategic Value Proposition

Choosing Turnkey PCBA is a strategic decision to optimize resource allocation, reduce complexity, and de-risk production.

The Turnkey Advantage vs. Consignment:

Aspect	Full Turnkey PCBA (SENTAK Managed)	Consignment/Kitted Assembly (Client Managed)
Procurement & Supply Chain	We handle it all. We leverage our volume, supplier relationships, and market intelligence to source, qualify, and manage inventory.	You handle it all. You purchase and ship all components to us, managing supplier relationships, shortages, and logistics.
Cost Predictability	Fixed per-unit assembly price. Material cost volatility and procurement overhead are our responsibility.	Variable final cost. You bear the direct cost of components and the hidden costs of procurement management.
Time-to-Market	Dramatically Accelerated. Parallel workflows: we begin sourcing immediately while engineering reviews the design.	Often Extended. Assembly cannot start until your complete kit is received and verified.
Quality & Traceability	Unified Responsibility. We guarantee the quality and authenticity of every component from our certified supply chain.	Split Responsibility. You guarantee component quality; we guarantee assembly quality.
Your Resource Focus	On Core Competencies: R&D, Marketing, Sales. Free your team from logistical tasks.	On Logistics: Purchasing, inventory management, supplier communication.

Ideal For: Startups, companies without a dedicated procurement team, projects with complex or long-lead-time components, and any organization prioritizing speed and wanting a single point of accountability.

The SENTAK Turnkey PCBA Process:A Managed,Phase-Gated Workflow

Our process is built on transparency,proactive communication,and rigorous stage-gate reviews.

Phase 1:Project Launch&Design Analysis

Kick-off:Assignment of a dedicated Program Manager and NPI Engineer.

Deep-Dive DFM/DFA: Engineering review of your design for manufacturability, testability, and cost optimization.

BOM Scrub&"Design for Procurement": We analyze every line item for availability, cost, lifecycle status, and suggest approved alternates

Phase 2:Intelligent Procurement&Supply Chain Activation

Sourcing Strategy: We utilize our multi-tiered network of franchised distributors and strategic OEM partners.

Proactive Risk Management: We identify single-source or long-lead items early, secure buffer stock, and provide regular supply chain health reports.

Component Qualification: Incoming parts undergo inspection and, if needed, electrical testing to verify authenticity and performance.

Phase 3:Manufacturing&Integrated Quality Execution

Seamless Handoff: Procurement data flows directly into our MRP system, scheduling fabrication and assembly.

In-Line Quality Gates: Automated Optical Inspection(AOI), X-Ray, and SPI ensure process control.

Your Program Manager provides scheduled build updates, including photos and data.

Phase 4:Comprehensive Validation&Delivery

Test Execution: We implement the agreed test plan—Flying Probe, ICT, Functional Test(FCT), or burn-in.

Final Audit&Reporting: Each unit receives a final check.You receive a comprehensive batch report.

Global Logistics: We manage packaging, labeling, and shipping to your specified destination.

Our Turnkey Capabilities&Technical Infrastructure

Our ability to deliver on the Turnkey promise is rooted in robust systems and deep expertise.

Supply Chain&Procurement Engine

ERP/MRP Integration: Real-time inventory and order tracking.

Preferred Partner Network: Relationships with leading distributors(e.g., Avnet, Arrow, Digi-Key)for priority allocation.

Counterfeit Mitigation Protocol: Adherence to AS6081/ISO 9001 standards, including visual inspection, XRF testing, and decapsulation for high-risk parts.

Value-Engineering&Cost Optimization

We don't just buy parts;we optimize your BOM for performance and cost.

Component Rationalization: Identifying opportunities to reduce unique part numbers.

Alternate Source Qualification: Providing equivalent, more available, or lower-cost component options for your approval.

Lifecycle Management: Flagging end-of-life(EOL)or not-recommended-for-new-design(NRND)components early.

Manufacturing&Test Scope

Full Technology Spectrum: SMT, THT, Mixed-Technology, Flex/Rigid-Flex, Box Build.

Advanced Testing: In-circuit test(ICT)fixture design, functional test(FCT)development, and automated optical inspection programming are all managed in-house.

Scalability: Dedicated production lines for prototypes and high-speed lines for volume, all under the same quality system.

Partnering with SENTAK: The Collaboration Model

A successful Turnkey partnership is collaborative,not passive.

What We Need From You:

Complete, Accurate Design Data Package: (As defined in our Prototyping Checklist).

Clear Specifications&Requirements: Target costs, quality standards(IPC Class), test expectations, and delivery schedules.

Timely Decisions: Prompt feedback on engineering change requests(ECRs)and component alternates.

What You Can Expect From Us:

A Dedicated Point of Contact: A Program Manager who owns the project's success.

Proactive, Not Reactive, Communication: Regular updates on schedule, supply chain, and any potential issues.

Financial Transparency: Clear, detailed quotations and invoices, with no hidden fees.

Is Turnkey Right for Your Project?

Choose SENTAK Turnkey PCBA if you answer"yes"to any of these:

Do you want to launch your product faster by parallelizing procurement and engineering?

Does your team lack the bandwidth or expertise to manage a complex,global electronics supply chain?

Are you concerned about component authenticity,allocation shortages,or cost volatility?

Do you want a single point of accountability for the quality and delivery of your finished assemblies?

What Is Included in a Turnkey PCBA Quote?

A Turnkey PCBA quotation can contain several separate cost categories. Understanding these items helps buyers compare quotations more accurately.

Cost Category	Typical Scope
Engineering preparation	File review, DFM/DFA analysis, BOM verification and production programming
PCB fabrication	Base material, layer count, board dimensions, surface finish and electrical testing
Electronic components	ICs, passive components, connectors, modules and other BOM materials
Solder paste stencil	Laser-cut stencil preparation for SMT assembly
SMT assembly	Solder paste printing, automated placement and reflow soldering
Through-hole assembly	Manual or automated insertion, wave soldering or selective soldering
Inspection	SPI, AOI, X-ray and visual inspection
Testing	Flying probe, ICT, FCT, programming, burn-in or customer-defined tests
Added processes	Conformal coating, potting, underfill, cleaning or rework
Box build	Cable assembly, enclosure installation and final system integration
Packaging and logistics	Antistatic packaging, labeling, export packaging and shipment

The final Turnkey PCBA cost depends on the approved BOM, order quantity, component availability, PCB complexity, assembly technology and testing requirements.

Factors That Affect Turnkey PCBA Cost

PCB Complexity

Layer count, material type, board dimensions, copper thickness, HDI structures, controlled impedance and surface finish all influence bare PCB cost.

Component Availability

Common components with stable availability are generally easier to source. Obsolete, allocated, long-lead-time or single-source components may increase cost and delivery risk.

Component Package

Fine-pitch BGAs, QFNs, CSPs, LGAs and miniature passive components require more precise printing, placement and inspection processes.

Assembly Density

A board with a high number of component placements requires additional machine programming, assembly time and inspection.

Production Quantity

Prototype orders have setup and engineering costs distributed across a small number of units. Larger orders may achieve a lower unit manufacturing cost.

Testing Requirements

Functional testing, programming, burn-in testing and custom fixture development require additional engineering and production resources.

Delivery Schedule

Expedited projects may require priority component sourcing, engineering review and production scheduling.

BOM or Design Changes

Changes made after component procurement or production preparation has started may affect material cost, lead time and engineering charges.

To improve cost predictability, SENTAK provides quotations based on an approved BOM, confirmed production files and a stated quotation-validity period.

Start Your Turnkey PCBA Project

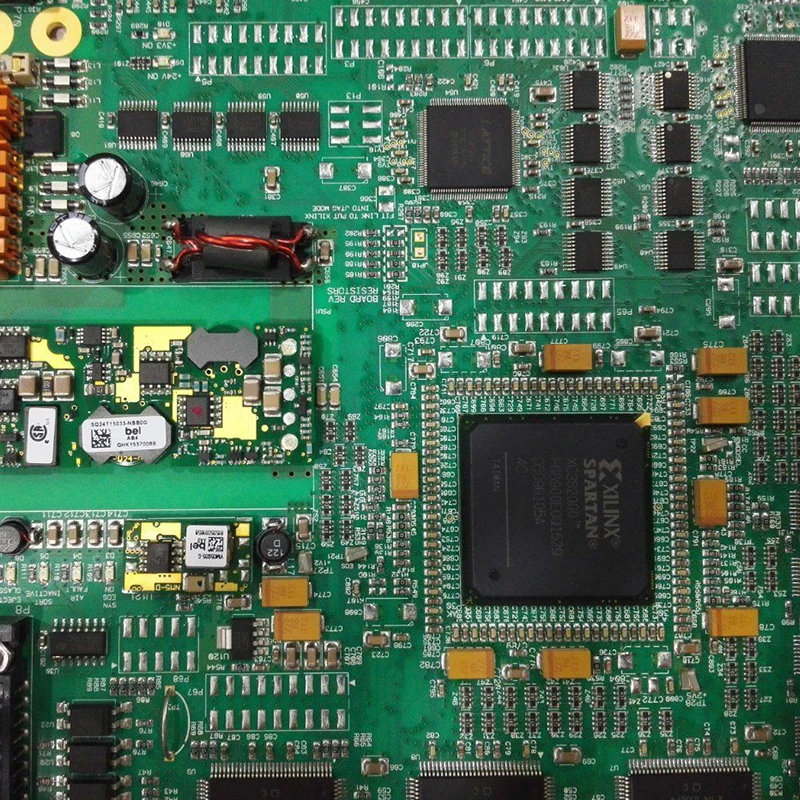

Turnkey PCBA(Full Turnkey)
