Mixed-Technology Assembly:Mastering the Synergy of SMT&THT
Seamlessly Combining Speed,Density,and Durability in a Single,Reliable Manufacturing Process.
Expert Process Sequencing&Thermal Management
Optimized Solder Paste&Wave/Selective Soldering Integration
Comprehensive DFM for Complex Hybrid Designs
Single-Source Accountability for Your Entire Assembly
The Strategic Imperative of Mixed-Technology Assembly

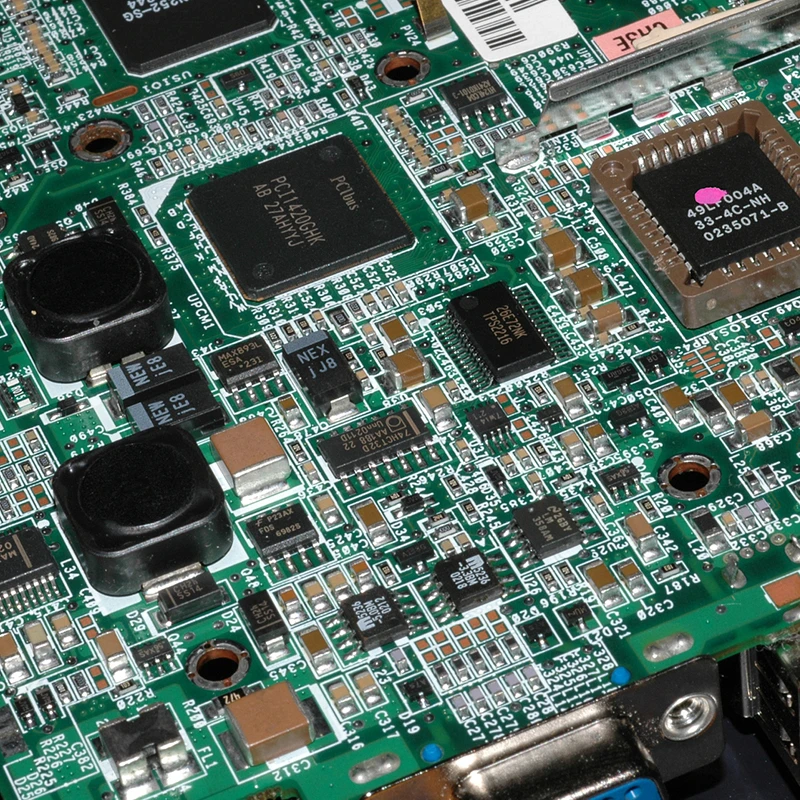

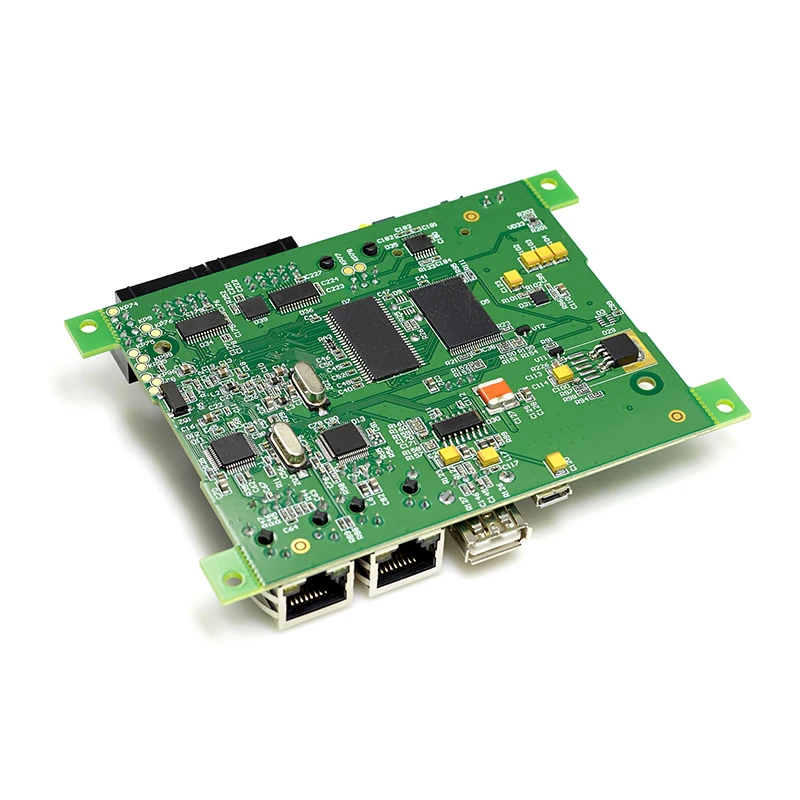

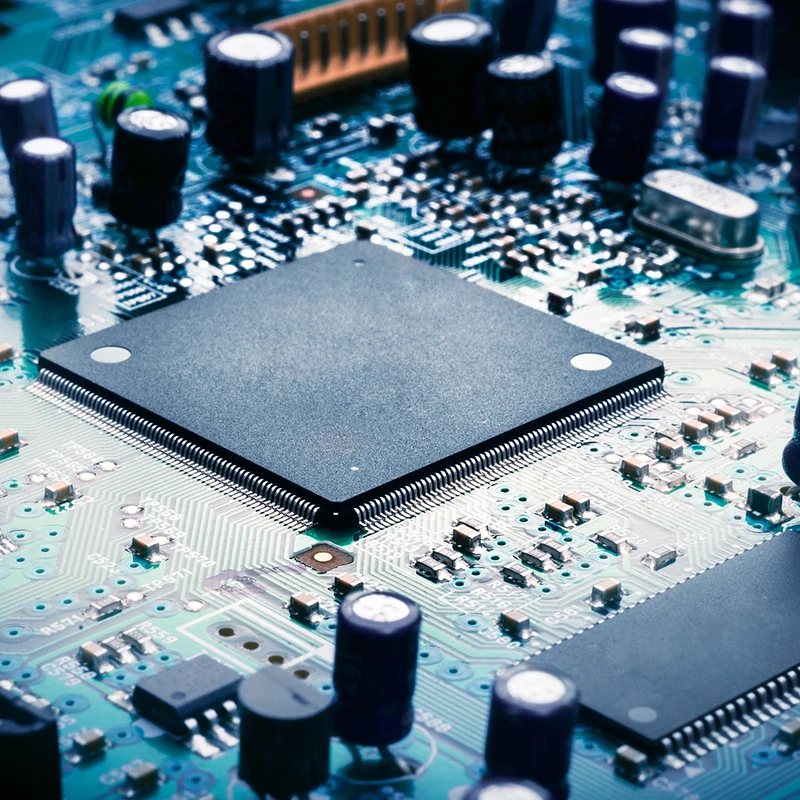

Modern electronics rarely rely on a single assembly method. Mixed-Technology Assembly is the sophisticated integration of Surface Mount Technology(SMT)and Through-Hole Technology(THT)on a single printed circuit board(PCB). This approach allows designers to leverage the high-density, high-speed advantages of SMT alongside the mechanical strength, high-power capability, and connector reliability of THT. At SENTAK, we specialize in orchestrating these complex processes, transforming challenging hybrid designs into reliable, manufacturable products. We don't just handle mixed-technology; we engineer the optimal workflow to maximize yield, performance, and cost-efficiency.
SENTAK's Methodology:Three Pathways to Success
The sequence of assembly is critical.We select the optimal methodology based on your board's component mix,volume,and thermal requirements.
1. Method A:SMT First,Then Wave Soldering(For High-Volume,Shielding-Friendly Designs)
● Process Flow: SMT components are placed and reflowed on both sides.The board is then palletized(using a custom carrier)to protect bottom-side SMT components during a conventional wave soldering cycle for the THT parts.
● SENTAK Expertise: Design and fabrication of precision solder pallets/masks that provide a perfect seal.Mastery of solder wave dynamics and flux chemistry to ensure no leakage or contamination of SMT areas.
● Best For: High-volume products with numerous THT components,where bottom-side SMT components are few and can be easily shielded.
2. Method B:SMT First,Then Robotic Selective Soldering(For Precision&Complexity)
● Process Flow: All SMT assembly is completed first.Then,a programmable selective soldering machine precisely solders each THT component or connector individually,with localized fluxing and heating.
● SENTAK Expertise: Advanced 3D programming to navigate complex board topography.Per-joint thermal profiling to prevent overheating nearby SMT components.This is our most flexible and precise method.
● Best For: Complex boards with high-density SMT,sensitive components,or THT parts that cannot be wave soldered due to shadowing or thermal constraints.
3. Method C:Manual/Semi-Automated THT Insertion Followed by SMT Reflow
● Process Flow: THT components(often connectors or large transformers)are manually or auto-inserted first.The board then passes through the SMT line.The single reflow oven cycle simultaneously solders the SMT components and the top-side leads of the pre-inserted THT parts.
● SENTAK Expertise: Careful selection of THT component materials(high-temperature plastic housings)and solder plating compatible with reflow profiles.Precise control of oven thermal mass to ensure THT joints achieve proper reflow without damaging components.
● Best For: Designs where THT components are primarily on the top side and can withstand SMT reflow temperatures.
|
Assembly Method |
Key Advantage |
Primary Challenge |
SENTAK's Solution |
|
SMT→Wave |
Highest throughput for high THT count. |
Protecting bottom-side SMT from solder. |
Custom engineered pallets&process validation. |
|
SMT→Selective |
Maximum flexibility&precision;no shadowing. |
Higher per-unit process time&cost. |
Robotic efficiency&optimized programs to minimize cycle time. |
|
THT First→SMT Reflow |
Single thermal cycle for some THT&all SMT. |
THT component thermal survivability. |
Component vetting&tailored reflow profile development. |
Technical Capabilities&Process Controls
Our capability extends beyond equipment to encompass the material science and process engineering required for success.
Thermal Process Management
Reflow Profiling for Mixed Loads: Developing oven profiles that adequately reflow SMT solder paste and any solder-coated THT leads without overheating sensitive components.
Wave/Selective Thermal Isolation: Using thermal break barriers in pallet design and localized preheat in selective soldering to protect adjacent BGAs or plastic connectors.
Solder&Material Compatibility
Reflow Profiling for Mixed Loads: Developing oven profiles that adequately reflow SMT solder paste and any solder-coated THT leads without overheating sensitive components.
Wave/Selective Thermal Isolation: Using thermal break barriers in pallet design and localized preheat in selective soldering to protect adjacent BGAs or plastic connectors.
Inspection&Quality Assurance
Post-Reflow Inspection: AOI/X-Ray for SMT joints.
Post-Wave/Selective Inspection: Visual/AVI for THT joint quality(fill,fillets)and inspection for solder balls or flux residue in protected areas.
Cross-Sectional Analysis: For critical interconnections,verifying the integrity of the plated through-hole where SMT reflow and wave solder may interact.
Design for Mixed-Technology Manufacturing(DFM)Guide
Success is engineered during the design phase.Collaborate with SENTAK early to implement these critical rules.
1. Spatial Planning&Keep-Out Zones
Wave Solder Shadowing: If using Method A, obey wave solder shadowing rules.Do not place tall SMT components(e.g., tall inductors)directly behind(downstream of)THT connectors.
Selective Nozzle Access: Ensure a 5mm clearance radius around each THT pin for selective soldering nozzle access and flux jetting.
SMT-to-THT Proximity: Maintain a minimum 2mm clearance between SMT component bodies and THT solder joints to allow for inspection and rework.
2. Thermal Design Considerations
Thermal Relief is Non-Negotiable: All THT pads connected to internal or bottom-side ground/power planes MUST use thermal relief spokes.This is the#1 cause of THT cold solder joints in mixed-tech boards.
Component Thermal Ratings: Verify that any THT component slated to go through SMT reflow(Method C)has a housing material rated for peak reflow temperatures(typically>245°C for lead-free).
3. Panelization&Tooling
Palletization Strategy: If using Method A, design your panel with pallet sealing lands in mind.We will provide a design rule for the solder mask dam required for an effective seal.
Fiducial Strategy: Ensure global fiducials are visible and usable after palletization if applicable.
Proactive Partnership: Submit your design for our Comprehensive Mixed-Technology DFM Analysis.We will simulate the assembly sequence, identify thermal and spatial conflicts, and provide a step-by-step assembly process map for your project.
Ideal Applications&Industries
Mixed-Technology Assembly is essential for sophisticated products that bridge the digital and physical worlds:
Industrial Automation: Control boards with high-power I/O modules(THT)and dense processing circuitry(SMT).
Automotive ECUs: Combining robust connector interfaces with advanced driver-assist microcontrollers.
Power Supplies&Motor Drives: Integrating high-current THT bus bars and transformer pins with SMT control and feedback loops.
Telecom/Networking Hardware: Dense SMT routing boards with numerous THT shielding cans and RF connectors.
Medical Diagnostic Equipment: Precision SMT analog front-ends married to durable patient-interface connectors.
The SENTAK Advantage:Single-Source,End-to-End Expertise
Choosing SENTAK for your mixed-technology project eliminates interface risk.We provide:
Unified Process Engineering: One team owns the entire SMT+THT workflow,optimizing the handoffs between processes.
Integrated Quality Data: Traceability and inspection data from all processes are consolidated into a single report.
Accountability: One point of responsibility for the success of the entire assembly,from first component placement to final test.
