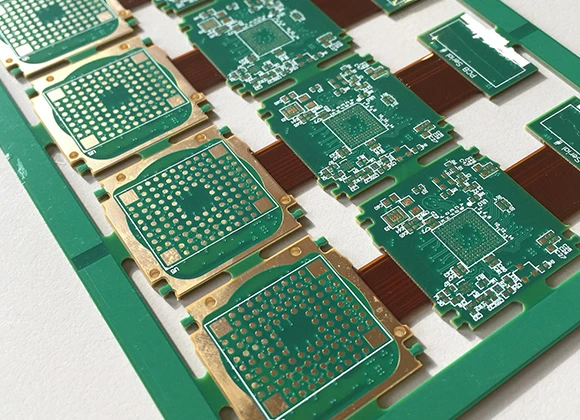

Rigid-flex PCB Capability
SENTAK Rigid-Flex PCB Manufacturing Capabilities
SENTAK provides advanced rigid-flex PCB manufacturing capabilities for electronic assemblies that require compact integration, reliable flexible interconnections, and complex multilayer construction. Our capabilities cover 4–12 layer standard rigid-flex PCBs and advanced structures up to 24+ layers, combining FR-4 or specialized rigid materials with flexible polyimide circuits.
With fine-line circuitry, laser microvias down to 50μm, controlled impedance, precision lamination, and custom stiffener configurations, SENTAK supports rigid-flex PCB fabrication for industrial electronics, telecommunications, automotive systems, and compact electronic devices. Our engineering team evaluates stack-up construction, bend radius, rigid-to-flex transitions, material compatibility, and manufacturing tolerances before production.
|
Parameter |
Standard Capability |
Advanced / Extended Capability |
Notes & Standards |
|
Total Layer Count (Rigid + Flex) |
4 to 12 layers |
Up to 24+ layers |
Includes combination of rigid multilayer and flexible layers. |
|
Rigid Section Material |
FR-4 Standard Tg (140°C), FR-4 High Tg (170°C+) |
Rogers, Polyimide, High-Speed/ Low-Loss Laminates |
Various dielectric thicknesses available. |
|
Flex Section Core Material |
Polyimide (PI), Adhesiveless (2-Layer) Preferred |
Adhesive-based PI, Specialized Flex Films |
Adhesiveless (e.g., Kapton+Cu) is standard for high reliability in dynamic bends. |
|
Flex Core Thickness (w/o Cu) |
1 mil (25µm), 2 mil (50µm) |
0.5 mil (12µm) to 4 mil (100µm) |
Thinner cores for tighter bends; thicker for improved dimensional stability. |
|
Flex Copper Weight |
0.5 oz (18µm), 1 oz (35µm) RA Copper |
0.33 oz (12µm) to 2 oz (70µm) |
Rolled Annealed (RA) Copper standard for flex endurance. |
|
Rigid-to-Flex Bonding |
Low-Flow or No-Flow Prepreg |
Multi-Step Lamination Cycles |
Critical process to prevent resin seepage into flex areas and ensure integrity. |
|
Coverlay (Flex Protection) |
PI Film with Adhesive, Laser/Die-cut |
Photo-Imageable Covercoat (PIC) |
Standard opening tolerance: ±0.075 mm (±3 mil). |
|
Parameter |
Standard Capability |
Advanced / Extended Capability |
Notes & Standards |
|
Max. Panel Size (for Processing) |
24" x 24" (610mm x 610mm) |
26" x 30" (660mm x 760mm) |
Panel utilization depends on design geometry. |
|
Board Outline Tolerance |
±0.15 mm (±0.006") |
±0.10 mm (±0.004") |
Via CNC routing. Contour complexity may affect tolerance. |
|
Min. Rigid Section Thickness |
0.4 mm |
0.3 mm |
Depends on layer count and material. |
|
Min. Flex Section Thickness (Single Layer) |
~0.10 mm |
~0.08 mm |
PI + Cu + Coverlay. |
|
Min. Bend Radius (Static Installation) |
6x total flex zone thickness |
4x total flex zone thickness |
Critical DFM rule. Must be clearly specified in bend areas. |
|
Min. Bend Radius (Dynamic Flex) |
10x total flex zone thickness |
8x total flex zone thickness |
For repeated bending during product life. Requires adhesiveless construction. |
|
Stiffeners (Local Reinforcement) |
FR-4, PI, Aluminum, Stainless Steel |
Custom shapes & thicknesses. PSA or Thermally Bonded. |
Used under connectors or components on flex areas. |
|
Parameter |
Standard Capability (Rigid & Flex Areas) |
Advanced / Extended Capability |
Notes & Standards |
|
Min. Trace / Space (Inner Layers) |
0.075 mm / 0.075 mm (3/3 mil) |
0.050 mm / 0.050 mm (2/2 mil) |
For 1 oz Cu. Flex areas may require larger geometry. |
|
Min. Trace / Space (Outer Layers) |
0.10 mm / 0.10 mm (4/4 mil) |
0.075 mm / 0.075 mm (3/3 mil) |
|
|
Etch Tolerance |
±0.025 mm (±1.0 mil) |
±0.015 mm (±0.6 mil) |
Additive to minimum feature size. |
|
Conductor Thickness Uniformity |
≥ 80% |
≥ 85% |
Measured via cross-section; critical for controlled impedance. |
|
Controlled Impedance |
±10% tolerance |
±7% or ±5% tolerance |
Coupon-based TDR testing. Requires early stack-up collaboration. |
|
Parameter |
Standard Capability |
Advanced / Extended Capability |
Notes & Standards |
|
Drilled Hole (PTH) Diameter (Min) |
0.20 mm (8 mil) |
0.15 mm (6 mil) |
Mechanical drilling. Aspect ratio up to 10:1 in rigid areas. |
|
Laser Microvia Diameter (Min) |
0.075 mm (3 mil) |
0.050 mm (2 mil) |
For HDI structures in rigid sections. |
|
Plated Hole Wall Thickness (Min) |
0.020 mm (0.8 mil) |
0.025 mm (1.0 mil) |
Ensures reliability during thermal cycling. |
|
Pad-to-Hole Ratio (Annular Ring) |
0.10 mm (4 mil) min. |
0.075 mm (3 mil) min. |
Especially critical in flex areas. |
|
Via-in-Flex (Staggered/Breakout) |
Supported (non-plated) |
Plated Vias in Flex (limited bend) |
Requires specific design to avoid cracking. Not recommended in dynamic bend zones. |
|
Finish Type |
Typical Thickness |
Applicability & Notes |
|
ENIG |
Ni: 3-5µm / Au: 0.05-0.15µm |
Most common. Excellent for fine-pitch, wire bonding, and flatness. |
|
Immersion Silver |
0.1 - 0.3µm |
Excellent solderability, good for high-frequency. Requires anti-tarnish. |
|
Immersion Tin |
0.8 - 1.2µm |
Good solderability, cost-effective. Limited shelf life. |
|
HASL-LF |
1-40µm (variable) |
Robust, cost-effective. Not recommended for fine-pitch or flex-only areas. |
|
OSP |
0.2 - 0.5µm |
Low cost, flat. For simple assemblies with quick turnaround. |
|
Electrolytic Hard Gold (Selective) |
Au: 0.5µm - 2.5µm (20-100µ") |
For edge connectors or high-wear contact areas on rigid sections. |
|
ENEPIG |
Ni: 3-5µm / Pd: 0.05-0.1µm / Au: 0.03-0.05µm |
Superior for wire bonding and multiple reflows. |
|
Test/Inspection Type |
Standard Method |
Capability / Standard |
|
Electrical Test |
Flying Probe (100% Netlist) |
Fixture Test for high-volume production. |
|
Automated Optical Inspection (AOI) |
2D/3D AOI |
On outer layers for opens, shorts, and defects. |
|
X-Ray Inspection (AXI) |
2D & 3D AXI |
For BGA, QFN, and internal layer/ via inspection (upon request). |
|
Microsection Analysis |
IPC TM-650 2.1.1 |
For process qualification & failure analysis (plating, lamination). |
|
Flex & Bend Testing |
IPC TM-650 2.4.3, Customer-Specific |
Dynamic cycling or one-time fold to validate design. |
|
Thermal Stress / Shock |
IPC TM-650 2.6.7, 2.6.8 |
Solder Float, Thermal Cycling per IPC-6013. |
|
Controlled Impedance Test |
TDR (Time Domain Reflectometry) |
Coupon-based verification to specified tolerance. |
|
Peel Strength Test |
IPC TM-650 2.4.9 |
For adhesion of copper and coverlay. |
|
Compliance Standard |
IPC-6013 (Performance Spec for Rigid-Flex) |
Designed and manufactured to meet Class 2 or Class 3 requirements. |
Engineering&Value-Added Services
In-depth analysis of your design files focusing on rigid-flex transitions,bend areas,material stack-up, and reliability.
Stack-up Design&Modeling
Collaborative engineering to develop an optimal,manufacturable layer build-up for electrical and mechanical performance.
Prototype & Low-Volume Support
Accelerated prototyping with full documentation to validate design and functionality.
Assembly Support(PCBA)
Turnkey solutions providing component sourcing, SMT/Thru-Hole assembly, and full system test on the finished rigid-flex assembly.
Note
This chart defines our standard manufacturing window. Specific project feasibility is confirmed through our formal Engineering Design Review process.
Rigid-flex PCB stack-up design determines electrical performance, mechanical flexibility, board thickness, and long-term interconnection reliability. Unlike conventional rigid PCBs, rigid-flex constructions must coordinate the materials and layer arrangements of both rigid and flexible sections.
SENTAK supports rigid-flex PCB manufacturing using FR-4, High-Tg FR-4, specialized rigid laminates, and polyimide-based flexible circuits.
|
Stack-Up Component |
Material Options |
Design Considerations |
|---|---|---|
|
Rigid Layers |
FR-4, High-Tg FR-4, Specialized Laminates |
Structural support, component mounting, dielectric properties |
|
Flexible Core |
Polyimide (PI) |
Flexibility, dielectric thickness, thermal resistance |
|
Flex Copper |
Rolled Annealed Copper |
Conductor flexibility and bending endurance |
|
Bonding Material |
Low-Flow or No-Flow Prepreg |
Resin flow control and rigid-to-flex bonding |
|
Flex Protection |
Polyimide Coverlay |
Copper protection and mechanical flexibility |
|
Local Reinforcement |
FR-4, PI, Aluminum, Stainless Steel |
Connector and component support |
For designs requiring repeated bending, reducing unnecessary copper and dielectric thickness in the flexible section can help improve bending performance.
Final stack-up configurations should be reviewed according to the number of flexible layers, bend requirements, controlled impedance, and assembly conditions.
One of the most important considerations in rigid-flex PCB manufacturing is whether the flexible section will bend only during installation or repeatedly throughout the product's service life.
Static Flex Design
Static rigid-flex circuits are designed to bend during assembly and remain in a relatively fixed position afterward. Typical applications include compact electronic modules, internal device connections, and folded three-dimensional assemblies.
Dynamic Flex Design
Dynamic rigid-flex circuits are designed for applications involving repeated movement. These constructions require more careful selection of flexible materials, copper thickness, bending geometry, and conductor routing.
|
Design Factor |
Static Flex |
Dynamic Flex |
|---|---|---|
|
Movement |
Initial installation or infrequent bending |
Repeated operational bending |
|
Flex Material |
Polyimide-based flex laminate |
Material selected for cyclic bending performance |
|
Copper Selection |
Based on construction and bend requirements |
Rolled annealed copper commonly preferred |
|
Bend Radius |
Based on installation geometry |
Larger radius generally preferred |
|
Via Placement |
Avoid intended bend regions |
Keep vias outside active bend zones |
|
Reliability Focus |
Installation bending and mechanical integrity |
Cyclic fatigue and conductor durability |
SENTAK's capability data lists a standard minimum bend radius of six times the total flex-zone thickness for static applications and ten times for dynamic applications.
These figures represent preliminary capability guidelines rather than guaranteed limits for every construction. Final bend radius requirements must be confirmed according to flex-layer count, conductor thickness, materials, bend angle, and expected operating cycles.
The rigid-to-flex transition is one of the most mechanically sensitive areas of a rigid-flex PCB. Improper design can create localized stress, conductor fatigue, resin contamination, or delamination during bending and assembly.
SENTAK reviews the following critical transition features:
Copper Trace Routing: Avoid sharp corners and abrupt conductor width changes near the transition.
Via Placement: Keep plated holes and microvias away from active bend areas and mechanically stressed transitions.
Prepreg Flow Control: Use suitable bonding materials and lamination processes to prevent unwanted resin flow into flexible sections.
Coverlay Design: Confirm opening dimensions, overlap, and alignment requirements.
Stiffener Placement: Position reinforcement features outside active bending regions.
Bend Direction: Align conductor routing and mechanical folding requirements to reduce localized stress.
For complex three-dimensional assemblies, mechanical drawings should clearly identify bend lines, fold direction, and the final installed shape.
Early transition-area review helps reduce manufacturing revisions and mechanical reliability risks.
SENTAK provides rigid-flex PCB fabrication for projects requiring complex multilayer structures, flexible interconnections, precision manufacturing, and reliable assembly integration.
