SMT Capability

SENTAK Surface Mount Technology (SMT) Manufacturing Capabilities

Document Purpose: This document outlines the comprehensive SMT assembly competencies of SENTAK. It details our equipment specifications, process controls, material handling, and quality assurance systems designed to deliver high-quality, reliable PCB assemblies from prototype to high-volume production.

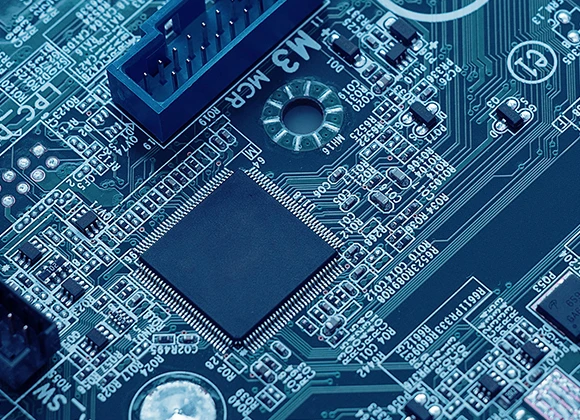

SMT Capability
1.0 SMT Line Overview & Core Equipment

Process Stage

Equipment / Technology

Key Specifications & Capabilities

Solder Paste Printing

Automatic Stencil Printers (Multiple Lines)

Vision Alignment (Fiducial & Pad Recognition), 2D/3D Solder Paste Inspection (SPI) integrated, Automatic stencil under-cleaning. Squeegee pressure & speed control.

Component Placement

High-Speed Chip Shooters

Speed: Up to 45,000 Components Per Hour (CPH). Feeder Capacity: 120+ slots per line. Placement Accuracy: ±0.05 mm. Components: 01005 (0402 metric), 0201, resistors, capacitors, small ICs.



Multi-Function / Fine-Pitch Placers

Speed: Up to 15,000 CPH. Accuracy: ±0.025 mm. Capable of: μBGA, 0.3mm pitch QFN, 0.4mm pitch CSP, POP (Package-on-Package), Connectors, Odd-form components. Up to 30mm component height.

Reflow Soldering

Nitrogen-Capable Convection Reflow Ovens

8-12 heating zones, 2 cooling zones. Closed-loop nitrogen environment (O₂ < 1000 ppm) for optimal solder joint quality, especially with low-residue/no-clean pastes. Full thermal profiling capability.

In-Line Inspection

3D Automated Optical Inspection (AOI)

Post-reflow inspection. Checks: presence, polarity, value, solder joint quality (bridging, insufficient, tombstoning).

Support

Automated Glue Dispensing, Selective Soldering, Conformal Coating Lines

Available for mixed-technology and specific reliability requirements.

2.0 Assembly Process Specifications & Accuracy

Parameter

Standard Capability

Advanced / High-Precision Capability

Minimum Component Size

0201 (0.6mm x 0.3mm) / 01005 (0.4mm x 0.2mm)

01005 standard placement.

Fine-Pitch Placement

0.3 mm pitch BGA/CSP/QFN

0.25 mm pitch (subject to DFM review).

Ball Grid Array (BGA)

0.3mm ball pitch, μBGA

0.25mm pitch. X-Ray inspection standard for all BGAs.

Package-on-Package (PoP)

Fully Supported

Bottom and top package placement and reflow.

Placement Accuracy

±0.05 mm (50μm) for chip components. ±0.035 mm (35μm) for fine-pitch/ICs.



Stencil Thickness Range

0.08 mm (3 mil) to 0.15 mm (6 mil)

Laser-cut, electroformed, or nano-coated stencils. Step-stencils for mixed technology.

Solder Paste Type

No-Clean, Water-Soluble, Halogen-Free. SAC305, SnPb, and low-temperature alloys (BiSn).



3.0 Materials & Component Management

System

Capability & Process

Component Packaging

Tape & Reel (EIA-481), Tube, Tray, Loose (for odd-form). BGA: Moisture-Sensitive Bag (MSD) with humidity indicator.

Feeder System

Automated, high-reliability feeders for 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm, and 84mm tapes. Tray feeders for QFP, BGA.

Inventory & Traceability

Barcode Scanner at all critical stages (kitting, loading, placement). Material tracking from warehouse to board. ERP/MES System integrated for full lot traceability.

ESD & Moisture Control

ESD-Safe workstations throughout. Dedicated MSD (Moisture Sensitive Device) storage with humidity control (<10% RH for dry cabinets). Baking ovens per IPC/JEDEC J-STD-033.

Solder Paste Management

Refrigerated storage. Automatic paste mixing and viscosity control. Solder paste life and expiration tracking.

4.0 Quality Assurance & Testing Capabilities

Test/Inspection Type

Equipment / Method

Purpose & Standard

Pre-Production

DFM (Design for Manufacturability) Review

In-depth analysis of Gerber, BOM, and Pick&Place files to prevent assembly issues.

In-Process

2D/3D Solder Paste Inspection (SPI)

Measures paste volume, height, area, and alignment post-printing. Prevents defects before placement.

Post-Reflow

3D Automated Optical Inspection (AOI)

100% board inspection for component and solder joint defects.

Post-Reflow (BGA/QFN)

2D/3D X-Ray Inspection (AXI)

Standard for all BGA assemblies. Inspects hidden solder joints for voids, bridging, and ball alignment.

Electrical Test

Flying Probe Test, ICT (In-Circuit Test), FCT (Functional Test)

Validates electrical performance, connectivity, and functionality. Fixture design service available.

Microsection & Solder Joint Analysis

Cross-Sectioning Lab

Destructive analysis to verify solder joint integrity, intermetallic compound (IMC) formation, and process health per IPC-J-STD-001.

Compliance & Standards

IPC-A-610 (Acceptability), IPC-J-STD-001 (Soldering), IPC-7711/21 (Rework).

Certified IPC Trainers on staff. Workmanship to Class 2 (Standard) and Class 3 (High-Reliability).

5.0 Supporting Processes & Value-Added Services

Process

Capability Description

Through-Hole Technology (THT)

Selective Soldering for mixed SMT/THT boards, Wave Soldering for high-volume pure THT, and Manual Soldering for prototypes and rework.

Conformal Coating

Selective Robotic Spraying and manual brushing/dipping. Coatings: Acrylic (AR), Silicone (SR), Urethane (UR), Parylene (upon request). Masking and inspection services.

Potting & Encapsulation

For mechanical protection and environmental sealing of specific board areas.

Box Build & Final Assembly

Integration of PCBA into enclosures, wiring harness attachment, software loading, final product testing, and packaging.

Rework & Repair

Hot Air Rework Stations with bottom pre-heaters for BGA removal and replacement. Micro-rework for fine-pitch components. Performed by IPC-certified technicians.

Programming & Functional Test

In-circuit programming (ICSP), firmware loading, and customized functional test rig development and execution.

6.0 Production Capacity & Flexibility

Aspect

Capability

Production Volume

Prototype (1-10 pcs), Low-Volume (10-1,000 pcs), Medium to High-Volume (1k-100k+ pcs).

Board Size Range

Min: 50mm x 50mm. Max: 500mm x 500mm (subject to equipment fixturing).

Board Thickness

0.4mm (Flex/Rigid-Flex) to 4.0mm (Heavy Copper).

Lead Time

Standard: 10-15 business days for turnkey (PCB+Assembly). Expedited: 3-7 business days available.

Engineering Collaboration

Optimal SMT results begin with a design optimized for assembly. We strongly encourage engaging our free DFM review service at the earliest stage of your PCB layout.



SMT Assembly for Fine-Pitch and Miniature Components



Fine-pitch SMT assembly requires accurate component placement, controlled solder paste deposition, and stable reflow conditions. As component dimensions decrease, small variations in pad geometry, stencil openings, or placement alignment can significantly affect solder joint quality.

SENTAK supports SMT assembly for miniature passive components and complex IC packages, including 01005, 0201, BGA, CSP, QFN, and Package-on-Package (PoP) devices.

Component Type

Assembly Considerations

Process Control

01005 / 0201

Component movement, tombstoning, insufficient solder

Fine-pitch stencil printing, placement control, SPI

BGA / μBGA

Hidden solder joints, bridging, voiding

Reflow profiling, X-ray inspection

QFN / DFN

Exposed pad solder volume, thermal pad voiding

Stencil aperture optimization, X-ray inspection

CSP

Fine-pitch alignment and solder joint formation

Precision placement and controlled reflow

PoP

Package alignment and multi-level solder interconnections

Package-specific assembly and reflow control

Fine-Pitch Connectors

Coplanarity, alignment, solder bridging

Placement verification and AOI

Our standard assembly capability includes 0.3mm pitch BGA/CSP/QFN packages, with 0.25mm pitch options subject to engineering review.



Solder Paste Printing and Reflow Process Control



Solder paste printing is one of the most important stages of SMT assembly because incorrect paste volume or alignment can lead to bridging, insufficient solder, tombstoning, and other assembly defects.

SENTAK uses automated stencil printers and 2D/3D solder paste inspection to control printing quality before component placement.

Key process considerations include:

  • Stencil Aperture Design: Adjust opening geometry according to component pad size, solder paste requirements, and package type.

  • Stencil Thickness: Select suitable thickness to balance solder volume for miniature components and larger solder joints.

  • Solder Paste Management: Control material storage, handling, exposure time, and process conditions.

  • SPI Inspection: Monitor solder paste volume, height, area, and positional alignment.

  • Reflow Profiling: Develop thermal profiles according to solder alloy, PCB construction, and component limitations.

  • Nitrogen Reflow: Use controlled nitrogen conditions when required to support soldering performance.

For assemblies containing BGA, QFN, or temperature-sensitive devices, reflow profiles are evaluated according to the selected solder paste, component requirements, and board thermal characteristics.



Request an SMT Assembly Manufacturing Quote

SENTAK provides precision SMT assembly services for prototypes, low-volume production, and larger manufacturing orders. Our capabilities include fine-pitch component placement, solder paste inspection, controlled reflow, AOI, X-ray inspection, and functional testing.

Our engineering team can review your PCB layout, component specifications, assembly requirements, and inspection criteria to evaluate manufacturing feasibility.

Please send your Gerber files, BOM, pick-and-place data, required quantities, and testing specifications to sales for technical review and quotation.
