- SMT STENCIL Dimension: 580*580MM 0.15mm thickness
PCB Solder Stencils (Enquiry pls send to sales@sentakpcb.com )
Now you can add a stencil to any PCB fabrication order. Simply place your PCB order as usual, and choose from a variety of stencil types and sizes, one to fit each of your stencil requirements.
Need to order a replacement stencil for boards previously manufactured by SENTAK PCB? No problem! Just contact your sales , ask them to check for you.
How to choose the correct stencil that suits your SMT requirement? Click Here to know more

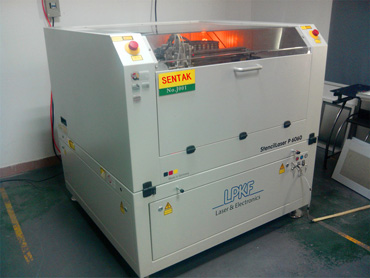

To meet the high precision request for the stencil, our company bought the LPKF STENCIL LASER p6060 from Germany.
And more infos for the laser stencil pls. See below table:
|
SMT Stencil |
|||
|
Dimension |
Effective Area |
Price |
Lead Time |
|
28*38cm without frame |
13*21cm |
50 |
1 day |
|
30*40cm |
13*21cm |
60 |
1 day |
|
37*47cm |
19*29cm |
60 |
1 day |
|
42*52cm |
24*34cm |
80 |
1 day |
|
45*55cm |
27*37cm |
90 |
1 day |
|
55*65cm |
35*45cm |
100 |
1 day |
|
58*58cm |
38*38cm |
100 |
1 day |
|
73.6*73.6cm |
50*50cm |
120 |
1 day |
|
LED Strip Stencil |
|||
|
40*60cm |
22*40cm |
900 |
1 day |

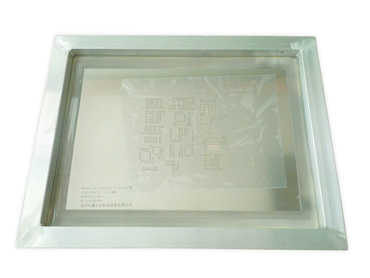

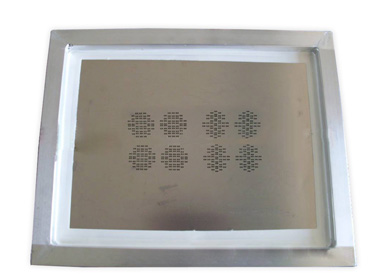

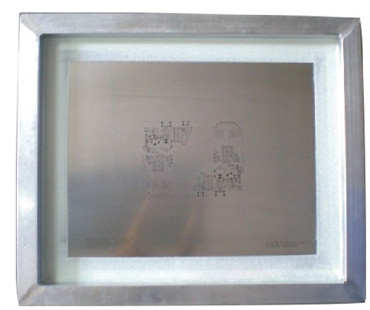

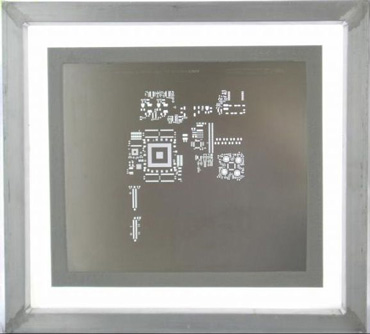

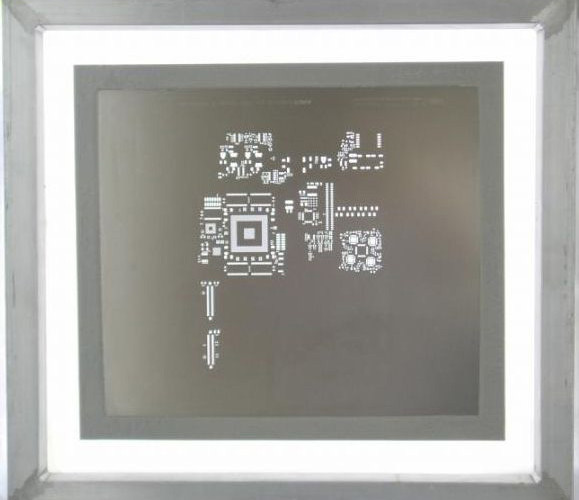

The Stencil photo pls. See below:
|
|
|
 |
 |
