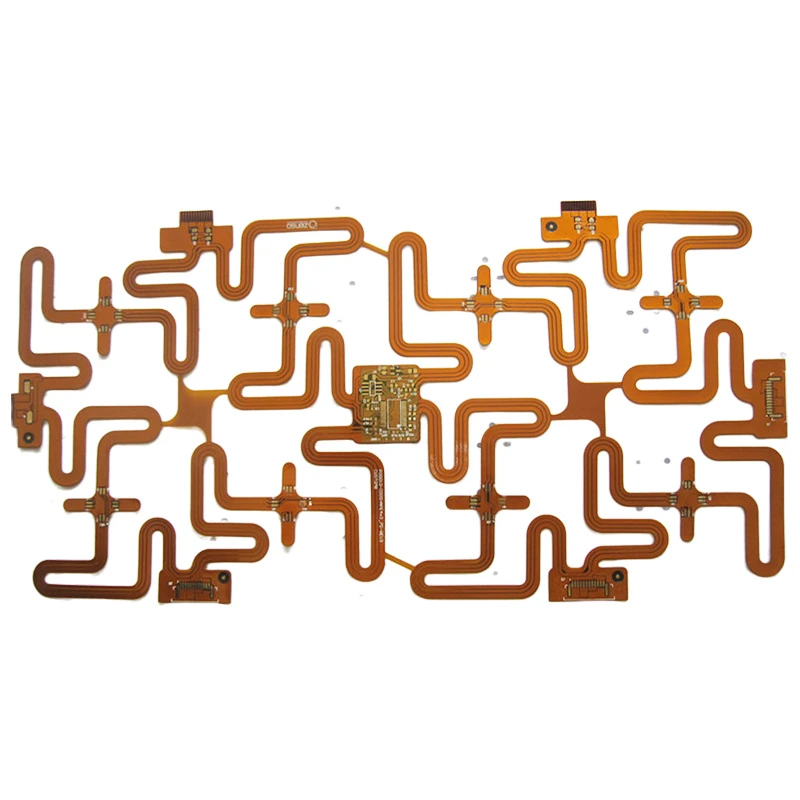

2-Layer Extra-Long Flexible PCB(500mm)

2-Layer Extra-Long Flexible PCB(500mm)

Engineered for applications requiring extended reach,reliable dynamic performance,and stable integration across complex 3D assemblies.

Inquire Now

Key Product Highlights

Exceptional Length for Extended Interconnections

500mm continuous flex length enables seamless signal and power transmission across large or moving assemblies,eliminating multiple connectors and potential failure points.

Ideal for applications where components are spaced far apart or must traverse complex spatial layouts within a compact device envelope.

Ultra-Thin,Lightweight Construction

Extremely thin 0.13mm polyimide core ensures high flexibility,a tight bending radius,and minimal weight—perfect for space-constrained and portable designs.

0.5oz copper on both layers balances electrical performance with mechanical durability during repeated flexing.

Hybrid Rigid-Flex Design with Bottom Stiffener

0.2mm FR4 stiffener laminated to the bottom side provides localized rigidity for secure component mounting,connector alignment,and ease of handling,without sacrificing overall flexibility across the length of the circuit.

Enables reliable soldering and assembly in designated areas while maintaining bendability in dynamic sections.

Reliable Surface Finish for Consistent Performance

Immersion Gold(ENIG)with 1µ″Au ensures excellent solderability,oxidation resistance,and a flat surface for consistent electrical contact across the entire length of the PCB

Why Choose This Extra-Long Flex PCB?

Simplifies system design by replacing multiple cables,connectors,and shorter PCBs with a single,integrated flex circuit.

Reduces weight,assembly time,and potential points of failure in long-reach or multi-axis applications.

Maintains signal integrity and mechanical reliability over extended lengths,even in high-flex or vibrating environments.

Target Applications

Medical endoscopes,robotic surgical arms,and extended imaging probes

Aerospace and drone wing-to-body interconnections

Industrial robotic cable management and articulated joint wiring

Large-format display interconnects and folding LED panels

Automotive seat and door harness replacements in premium electric vehicles
